Shelter Doors & Hatches

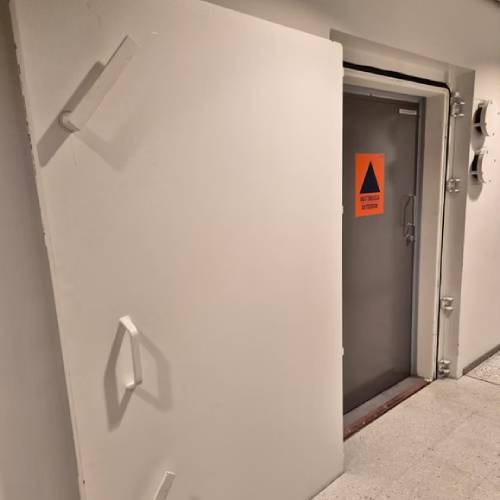

Key Features:

• Comply with the requirements of Finnish civil defence norms.
• The standard door leaf is made of a single plate 20 or 30 mm thick; other options are available for customised doors.
• Standard sizes 900×2000 mm & 1200×2000 mm, optionally can be designed to the customer’s requested dimensions.
• The door is designed to withstand a 200 kN/m2 (2 bar) blast wave pressure load according to Finnish shelter norms.
• The hinges and bolt mechanism are able to withstand recoil forces.
• The door is equipped with shock supports that make the door resistant to shock loads up to 30 g.
• The door is gas-tight when closed to prevent harmful gases from entering the civil defence shelter, and the shelter can be overpressurised.
• Optional protection from splinters with the SO-1S model, which has a door panel at least 30 mm thick instead of 20 mm in the standard model SO-1.
• The standard door frame is manufactured to be cast in 300 mm-thick concrete walls, but can be customised for thicker walls.

Key Features:

• The doors are heavy-duty with an internal structure for high-pressure loads
• Standard door opening sizes are 900×2000 mm, 1200×2000 mm, 800×1800 mm, and customized sizes are available.
• Special frame shape allows retrofitting the door in existing structural openings or on pre-installed frames
• The patented design of the door allows good serviceability after installation

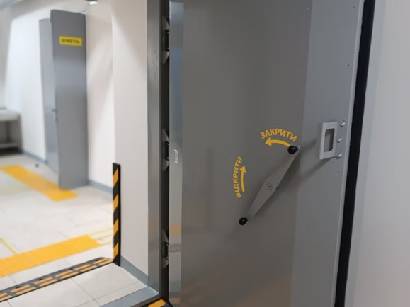

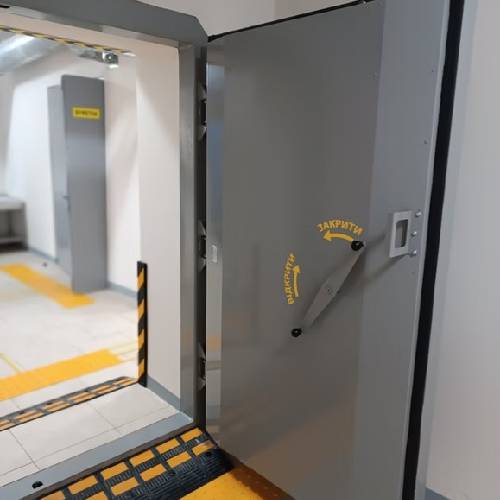

DU Doors Models:

1. DU-IV (ДУ-IV) gastight doors
2. DU-IVR (ДУ-IV) blast and gastight door (100 kPa)
3. DU-250 (ДУ-250) blast and gastight door (250 kPa)
4. DU-III (ДУ-III) blast and gastight door (440 kPa)
5. DU-I (ДУ-I) blast and gastight door (900 kPa)
6. customized solutions based on DU-type doors

Key Features:

• Tested and certified doors according to the national standard SI 4422
• A large variety of doors, from light blast doors for residential shelters and safe rooms to heavy-duty blast-rated doors for bunkers.
• In most door types, the frame is designed for the installation of an additional fire/security door along with a blast and gas-tight door.

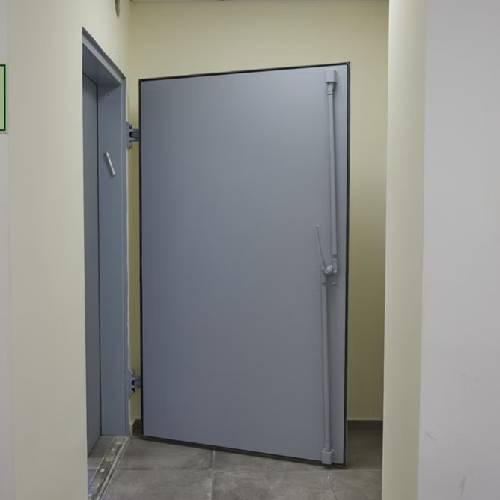

Israeli Shelter Door Types:

1. MD – light blast and gastight door for residential shelter / safe rooms
2. MDR – blast and gastight door for residential shelter / safe rooms with 15 mm steel plate for splinter protection
3. MMH – blast and gas-tight door for civil defence shelters and protected spaces
4. MMR – heavy-duty blast, gastight and splinter-protected door with leaf made of 25mm or 32 mm thick steel plate.

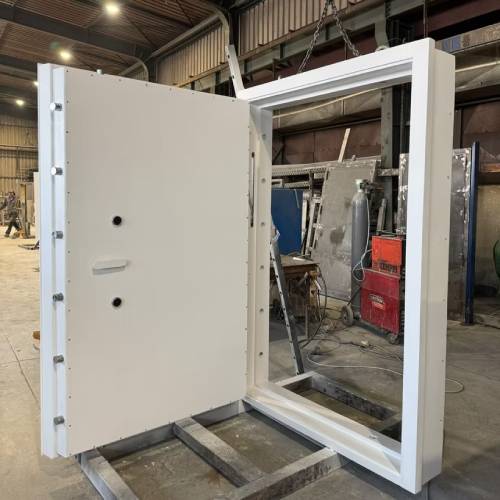

Key Features:

• Custom sizes and specifications based on project requirements.
• Manual or electric operation to suit different environments.
• Advanced locking mechanisms for superior security.
• Special door designs for emergency facilities and safe rooms.

Applications:
Ideal for custom shelters, government buildings, embassies, data centers, and other high-security locations requiring bespoke protective solutions.

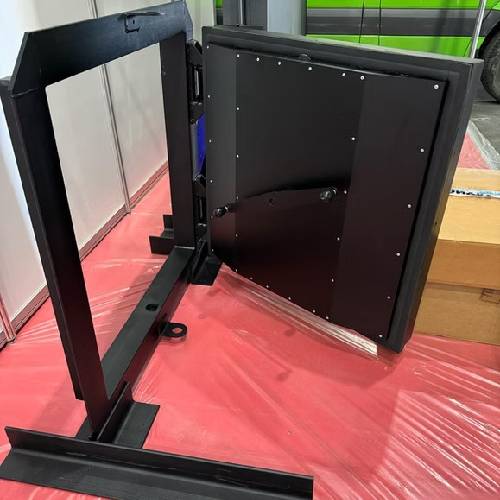

Key Features:

• Reinforced frames and locking systems for maximum security.
• Easy-to-operate mechanisms for quick access during emergencies.
• Gas-tight seals to prevent contamination from external threats.
• Built to withstand high overpressure and extreme environmental conditions.

Applications:
Widely used in shelters, underground bunkers, military installations, and industrial plants where quick, secure evacuation routes are essential.

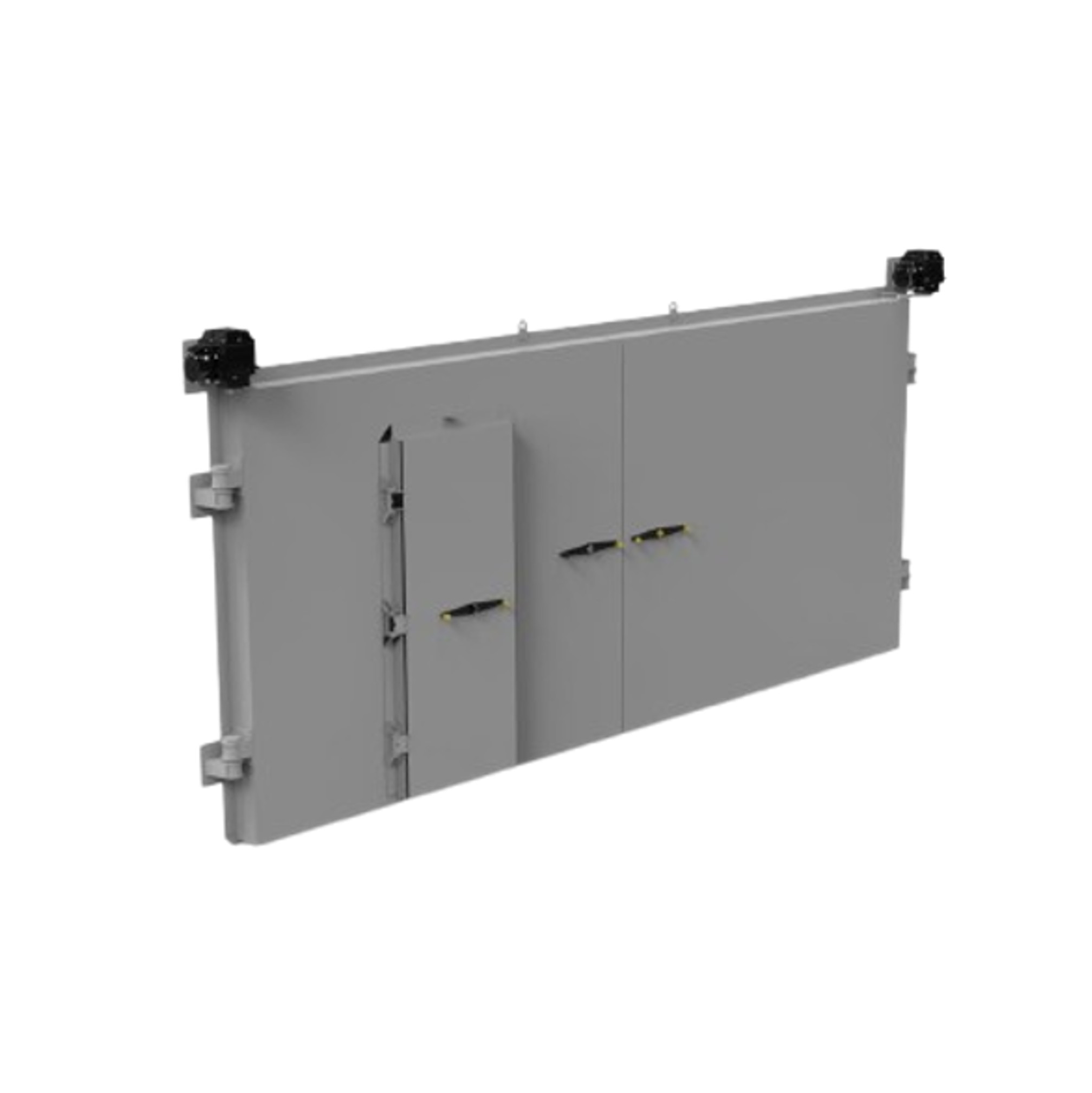

Models:

1. Hinged Protective Doors / Gates
2. Sliding Protective Doors / Gates
3. Bulletproof and Fire Rated Gates
4. Specially Designed Doors / Gates
5. Protective Roller Shutters

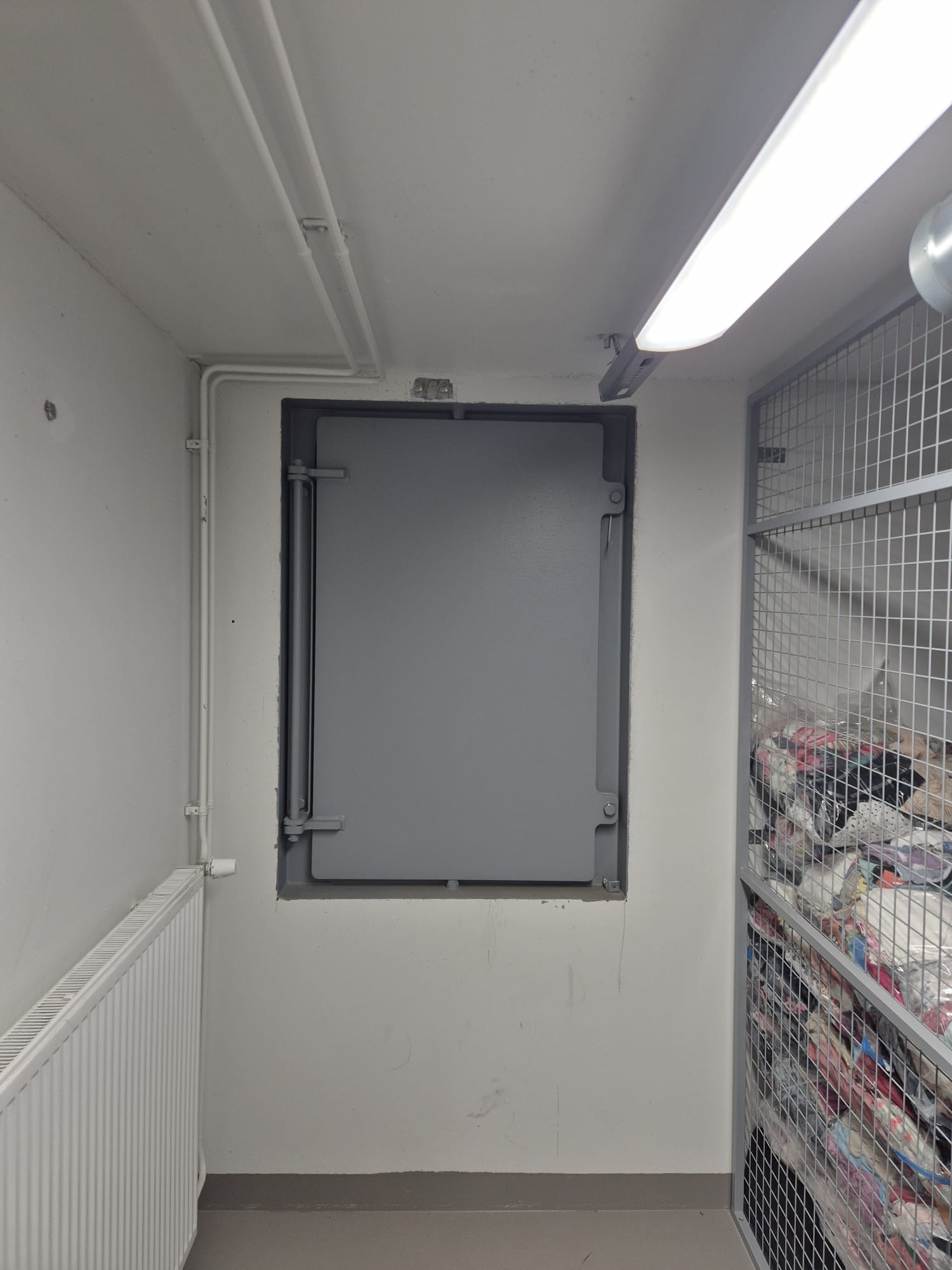

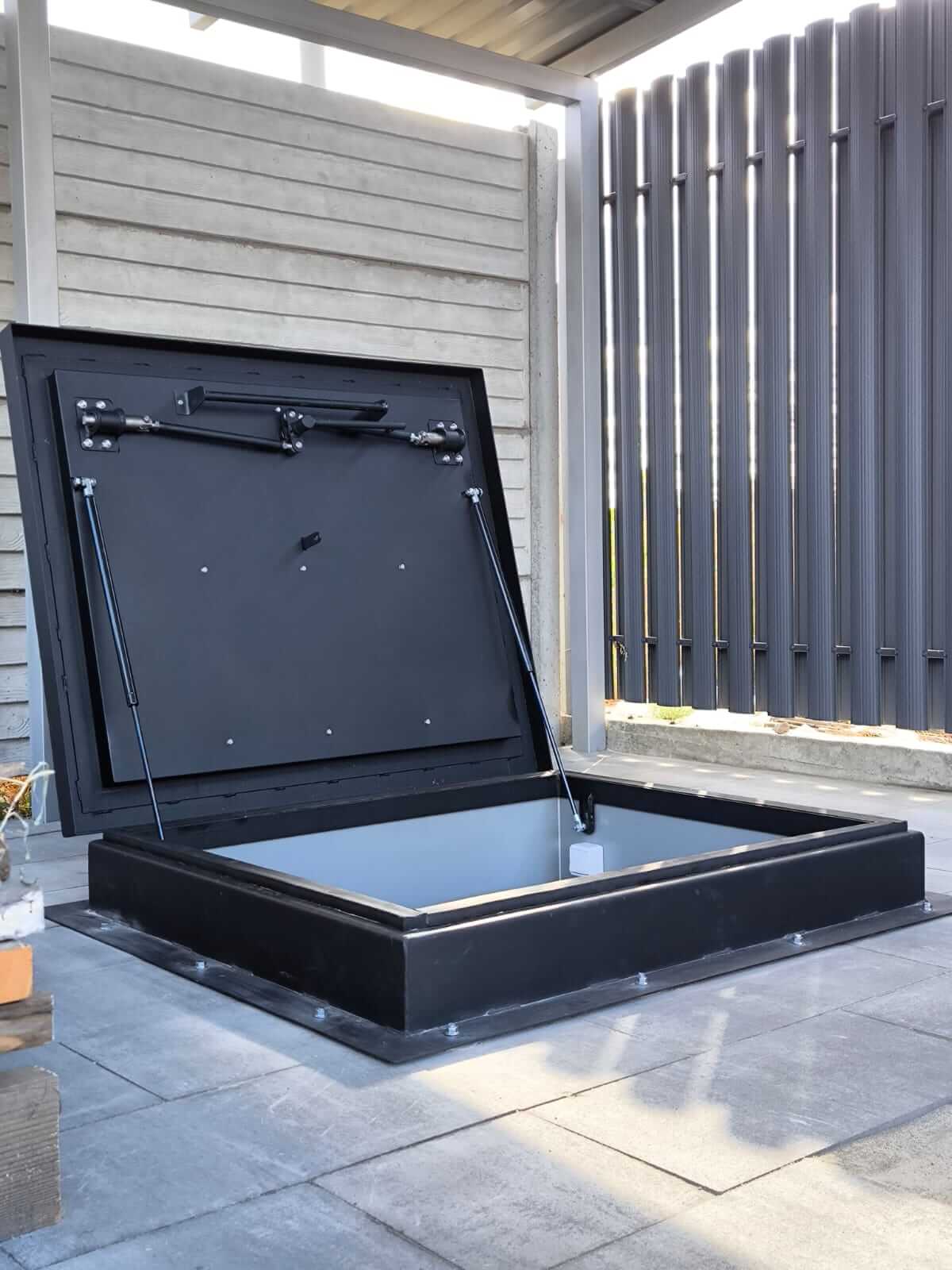

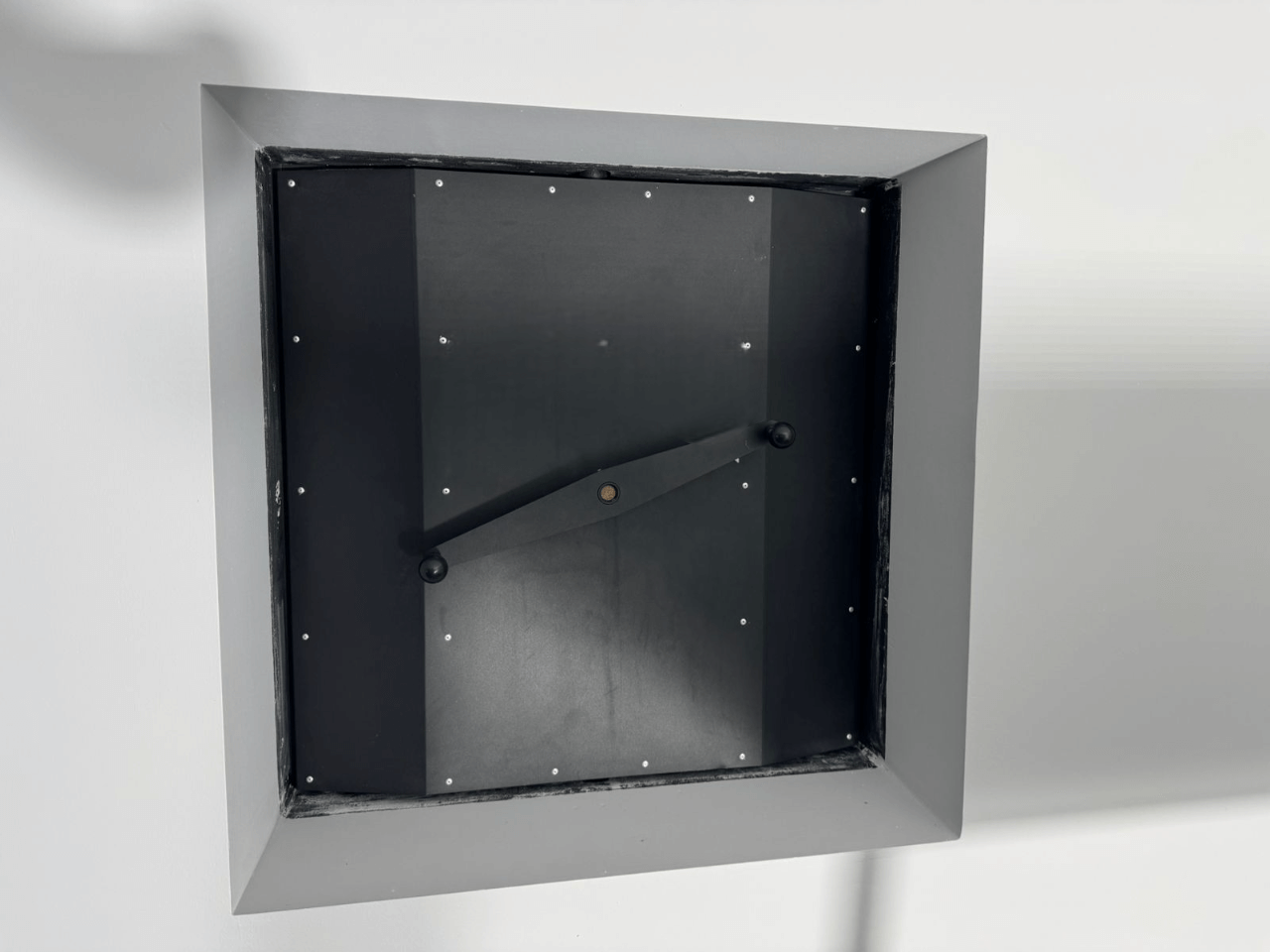

• Thousands of DU doors and SU hatches installed in shelters, bunkers and industrial facilities around the world.

• Comply with technical norms: TU U 25.1-38587375-001:2016 and other standards

• The doors are heavy duty with steel structure to withstand high pressure blast loads

• Can be additionally integrated with ballistic panels for ballistic protection and locks for forced entry resistance

• Special frame shape allows retrofitting the door in existing structural openings or on pre installed frames

• The patented design of the door allow good serviceability after installation
